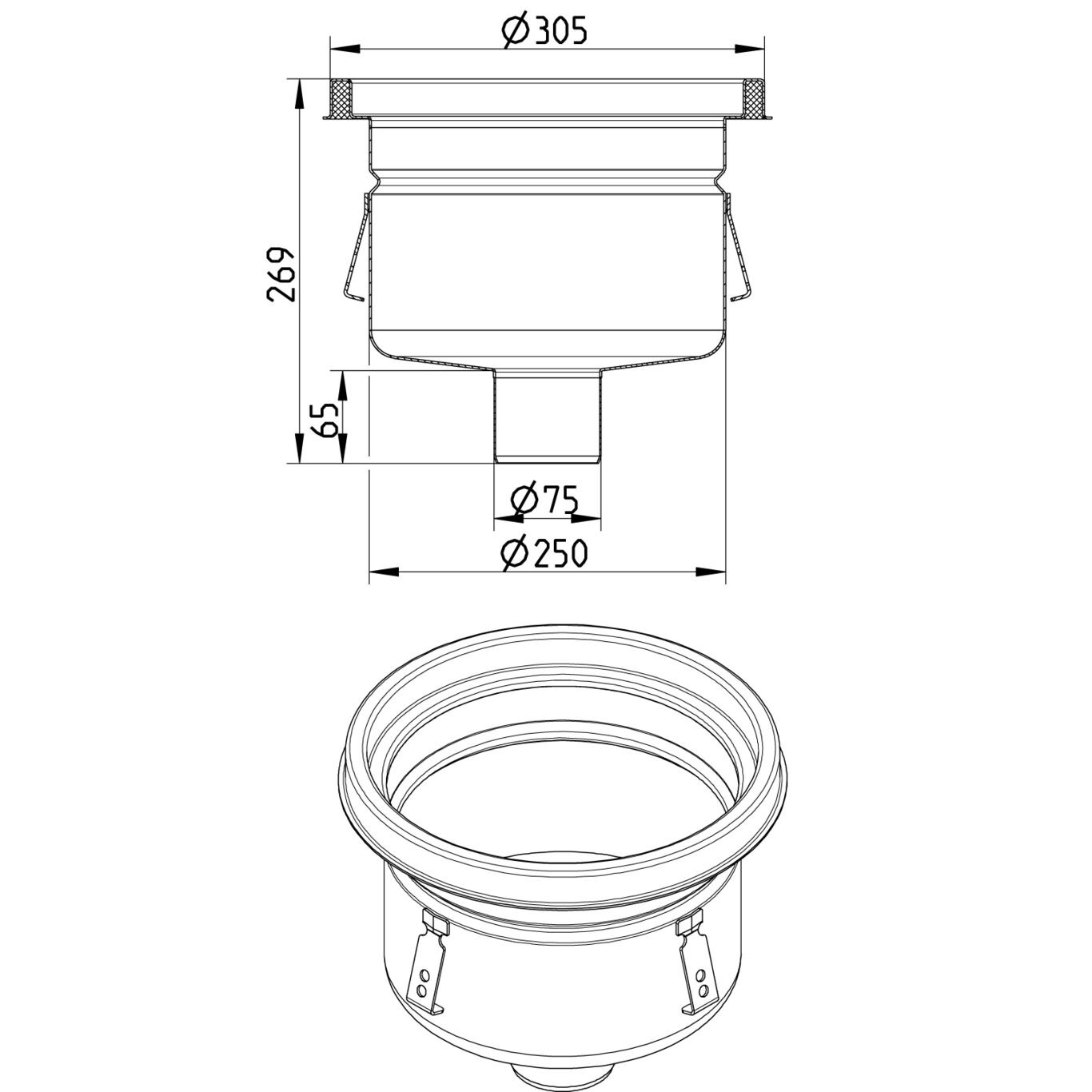

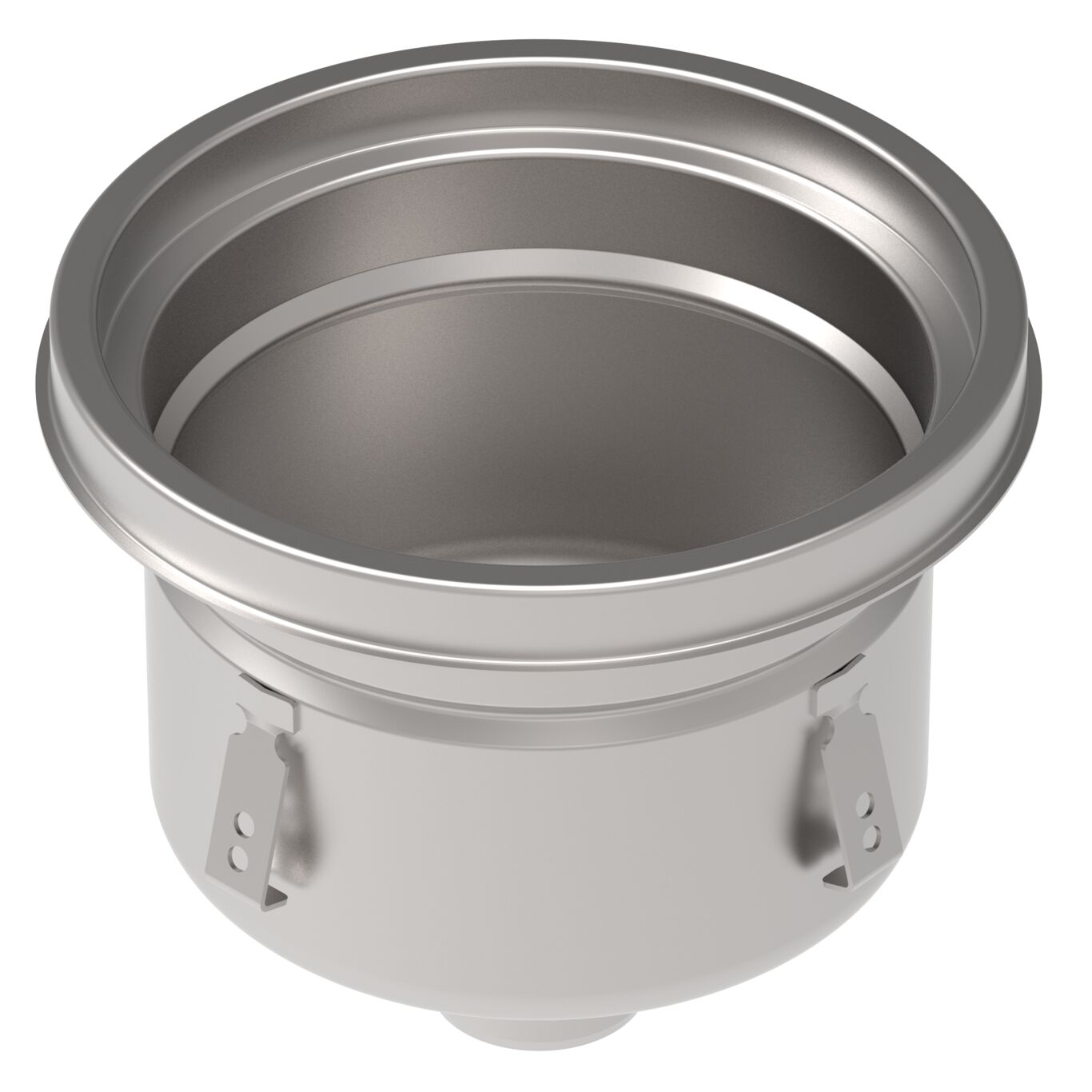

INDUSTRIAL DRAIN, LOW - (766.503.075)
×
![]()
Part Of the Series: Drain-No membrane-305
Type no.: 766.503.075
EAN no.: 5705499110487
LVI no.: 3303585
Size: Ø305
INDUSTRIAL DRAIN, LOW
-Floor: resin
-Frame: Ø305mm
-Outlet: Ø75mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Adjustable | No |
| Field of Application | Industrial |
| Floor | Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 269 |
| Number of Inlets | 0 |
| Number of inlets (Inch) | 0 |
| Number of Screw Holes | 0 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Vertical |
| Shape | Round |
| Size (Inch) | Ø12 |
| Size (mm) | Ø305 |
| Weight (kg) | 5,04 |
| Weight (lbs) | 11,11 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
