FUNNEL FOR GRATING - (670.005.000)
×
![]()
Part Of the Series: Special accessories
Type no.: 670.005.000
EAN no.: 5705499137965
VVS no.: 164130903
LVI no.: 3305620

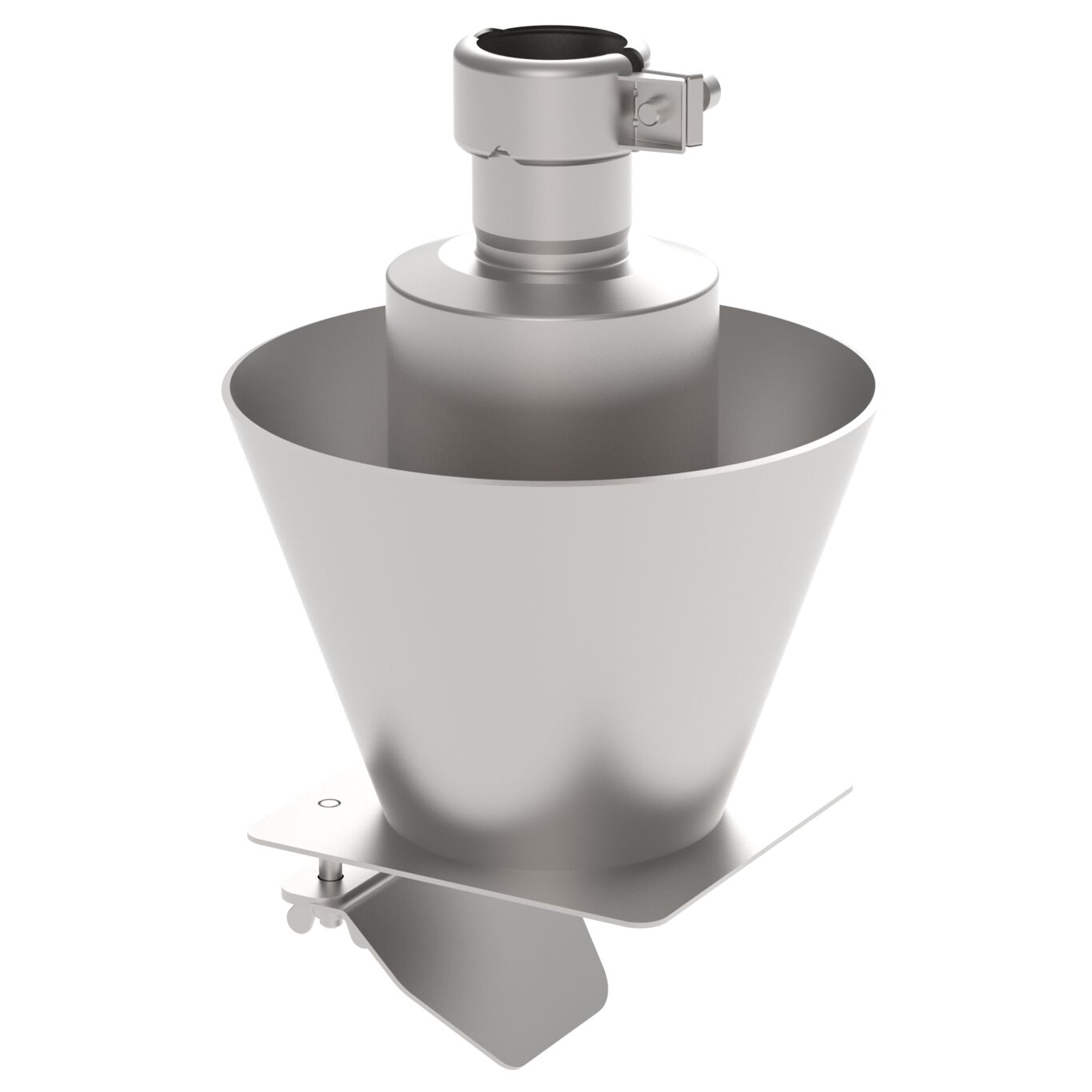

FUNNEL FOR GRATING
-Stainless steel: AISI304/EN1.4301

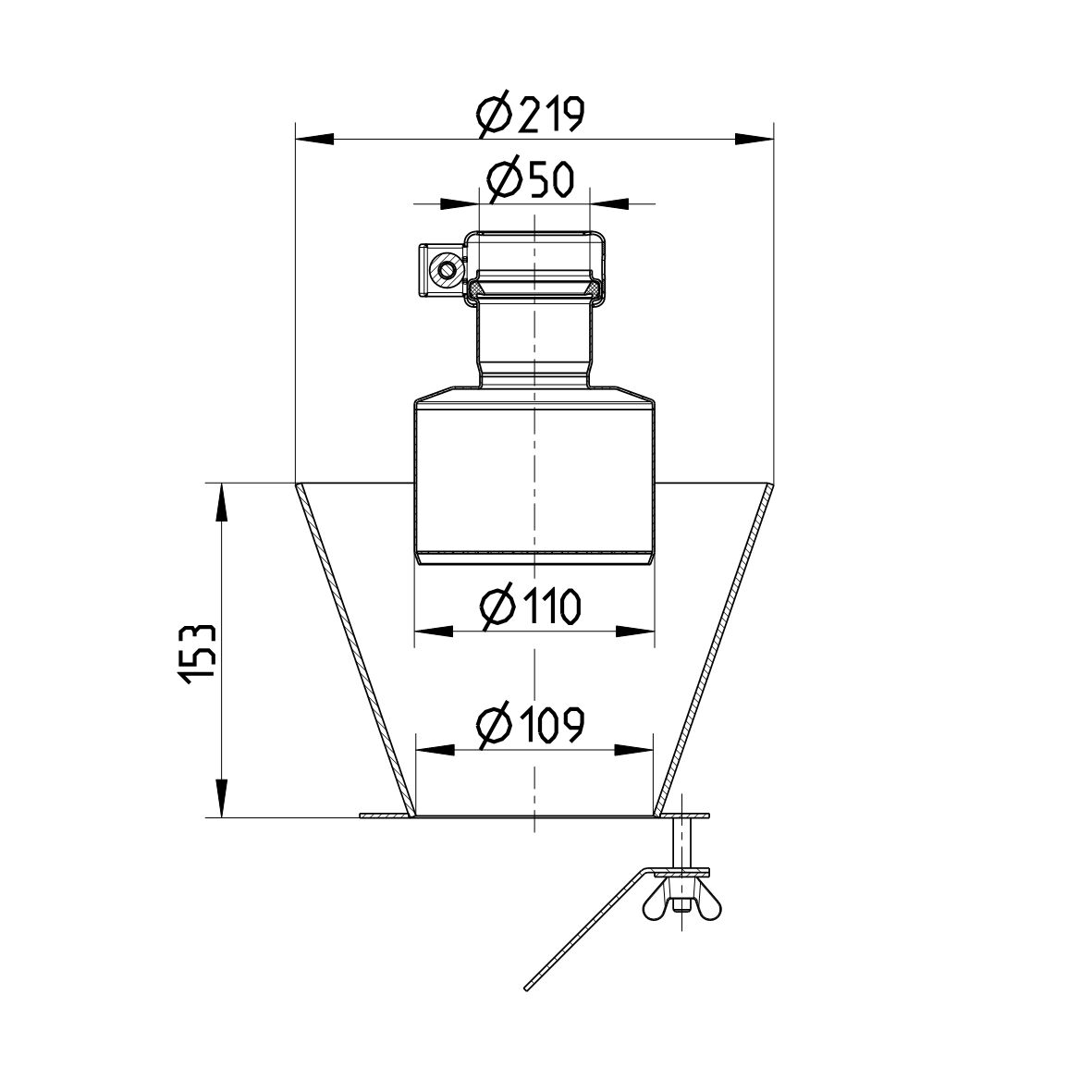

| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Min. height (Inch) | 6,02 |
| Minimum Height (mm) | 153 |
| Outlet dia. (Inch) | 4 |
| Weight (kg) | 2,93 |
| Weight (lbs) | 6,46 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
