S-TRAP 180° - (525.180.075 S)
×
![]()
Part Of the Series: Water trap-S
Type no.: 525.180.075 S
EAN no.: 5705499114102
NRF no.: 3395048

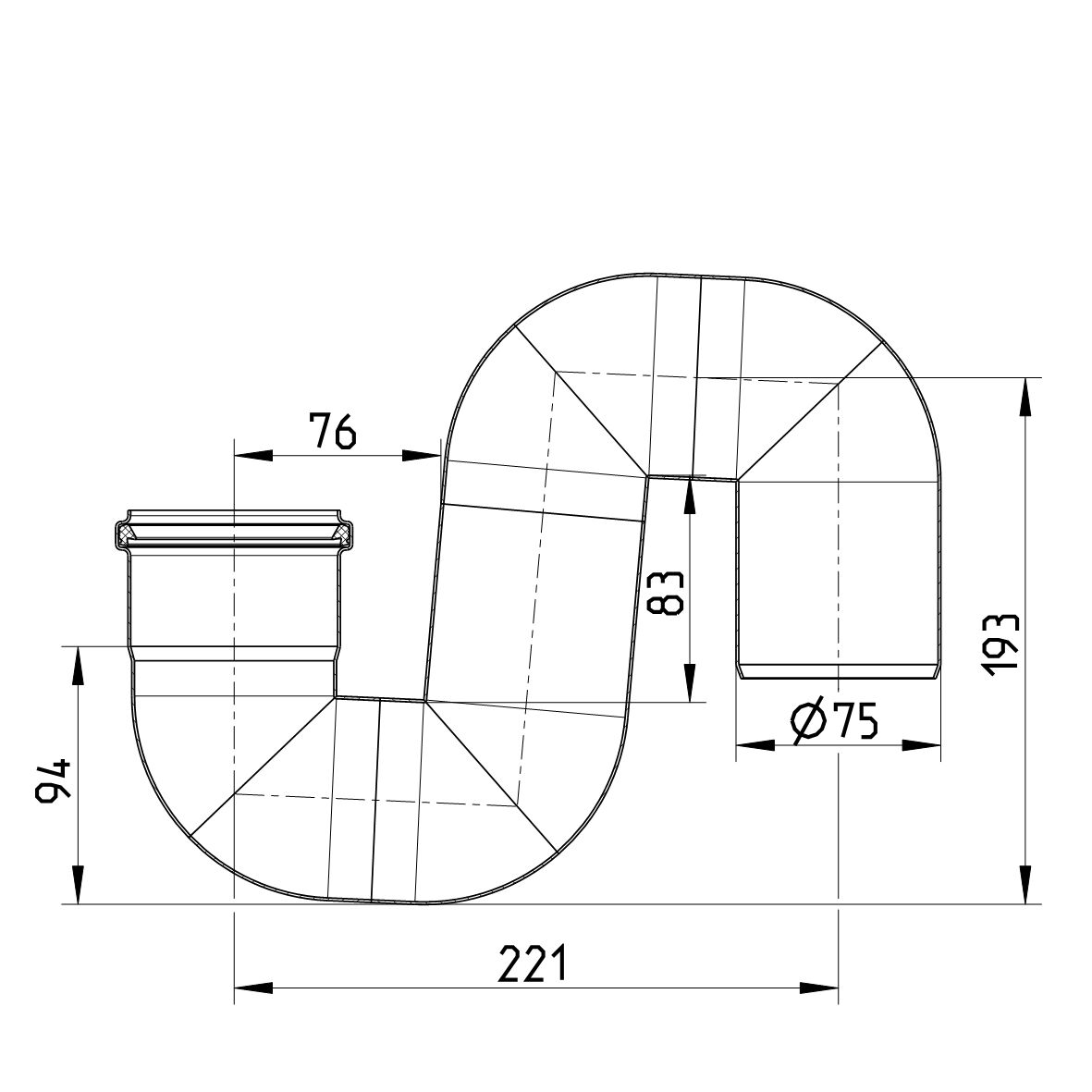

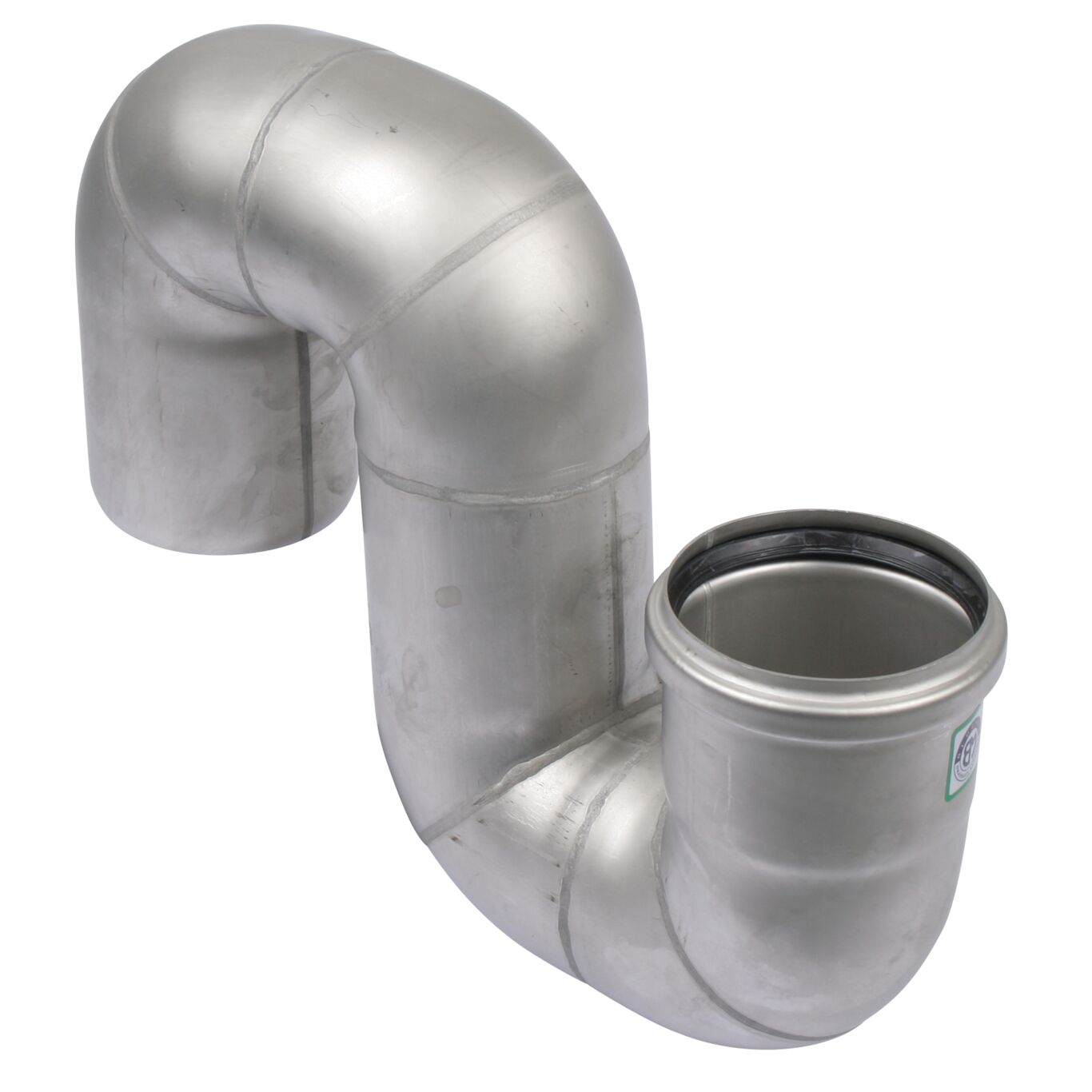

S-TRAP 180°
-Diameter: Ø75MM
-Water seal height = 81mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 180 |
| Field of Application | Domestic|Industrial |
| Length (mm) | 94 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Water Seal Height (mm) | 83 |
| Weight (kg) | 1,00 |
| Weight (lbs) | 2,2 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
TÜRK LOYDU - 25041616077231247
HACCP Food Safety Programme - Europe
AUS - WMKT00204 - 24 ABS - 23-2329630-PDA KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products Bureau Veritas, 02375-I0 Pipes & Fittings Bureau Veritas - 03456-H0, ShipDrains RINA -MAC320524XG EuroPipe
