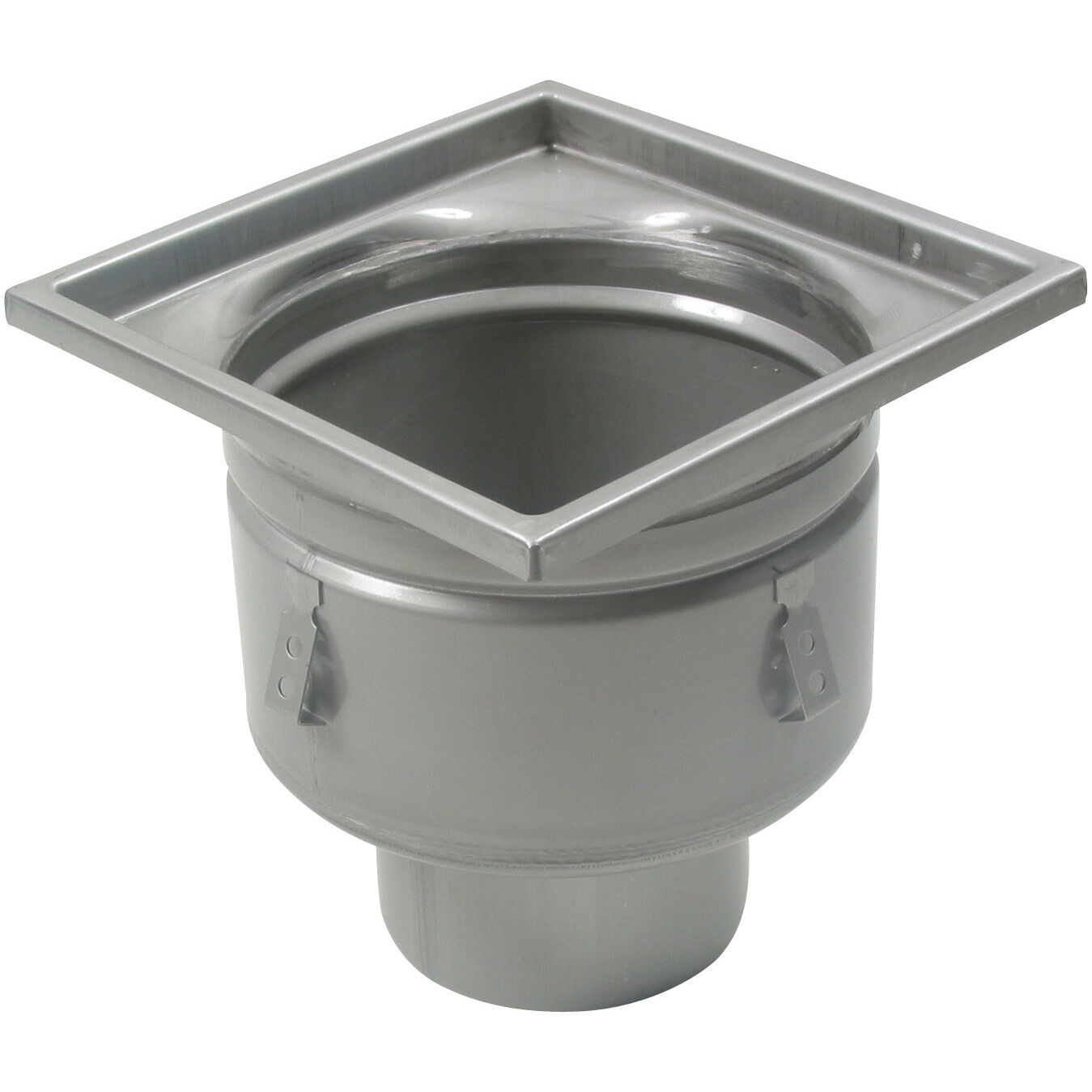

INDUSTRIAL DRAIN, LOW - (766.403.160)
×
![]()
Part Of the Series: Drain-No membrane-300
Type no.: 766.403.160
EAN no.: 5705499110401
VVS no.: 153041318
NRF no.: 3396054
LVI no.: 3303571
Size: 300x300
INDUSTRIAL DRAIN, LOW
-Floor: concrete and tiled
-No membrane, frame: 300x300mm
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Adjustable | No |
| Field of Application | Industrial |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Number of Inlets | 0 |
| Number of inlets (Inch) | 0 |
| Number of Screw Holes | 0 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (Inch) | 11¾x11¾ |
| Size (mm) | 300x300 |
| Weight (kg) | 4,86 |
| Weight (lbs) | 10,71 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
