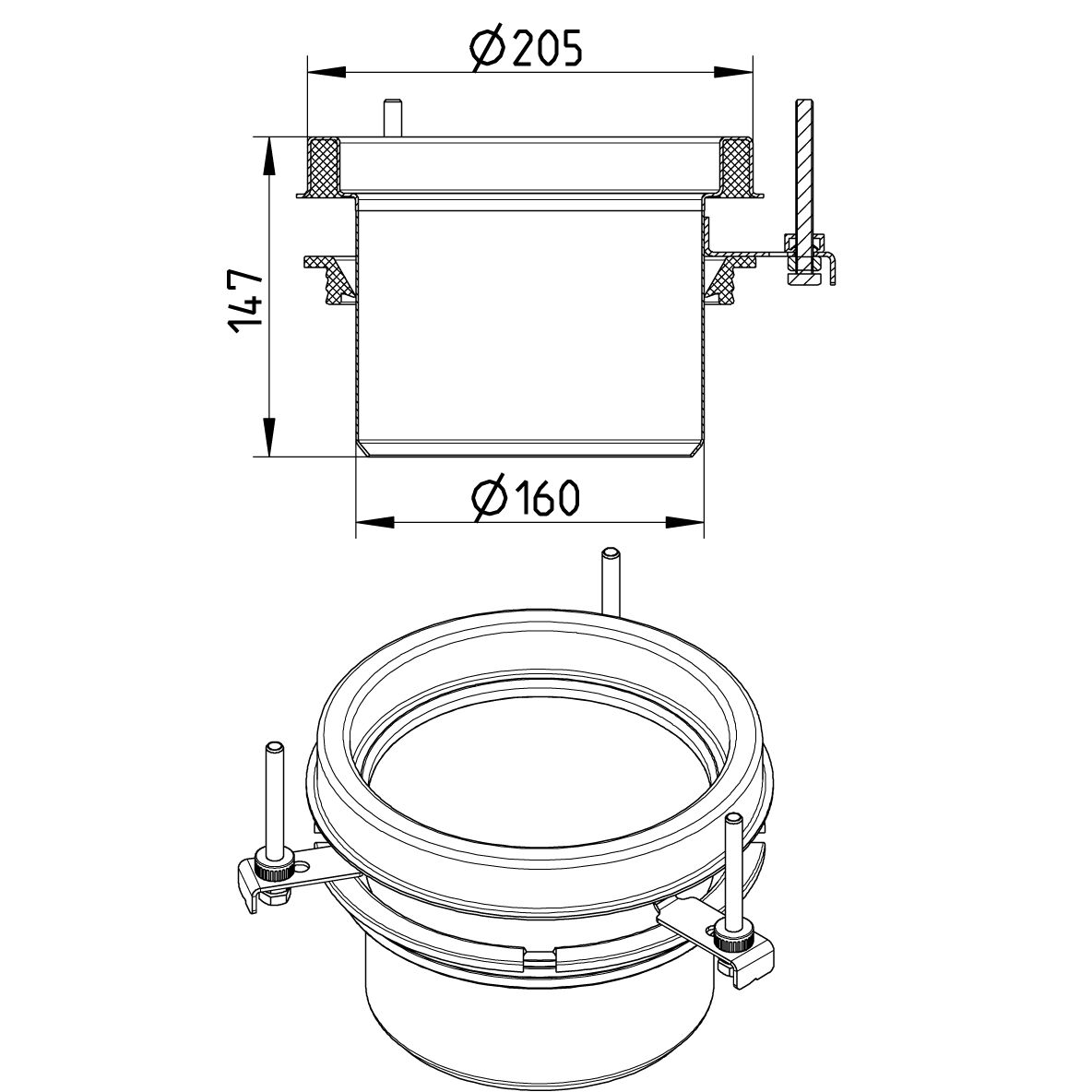

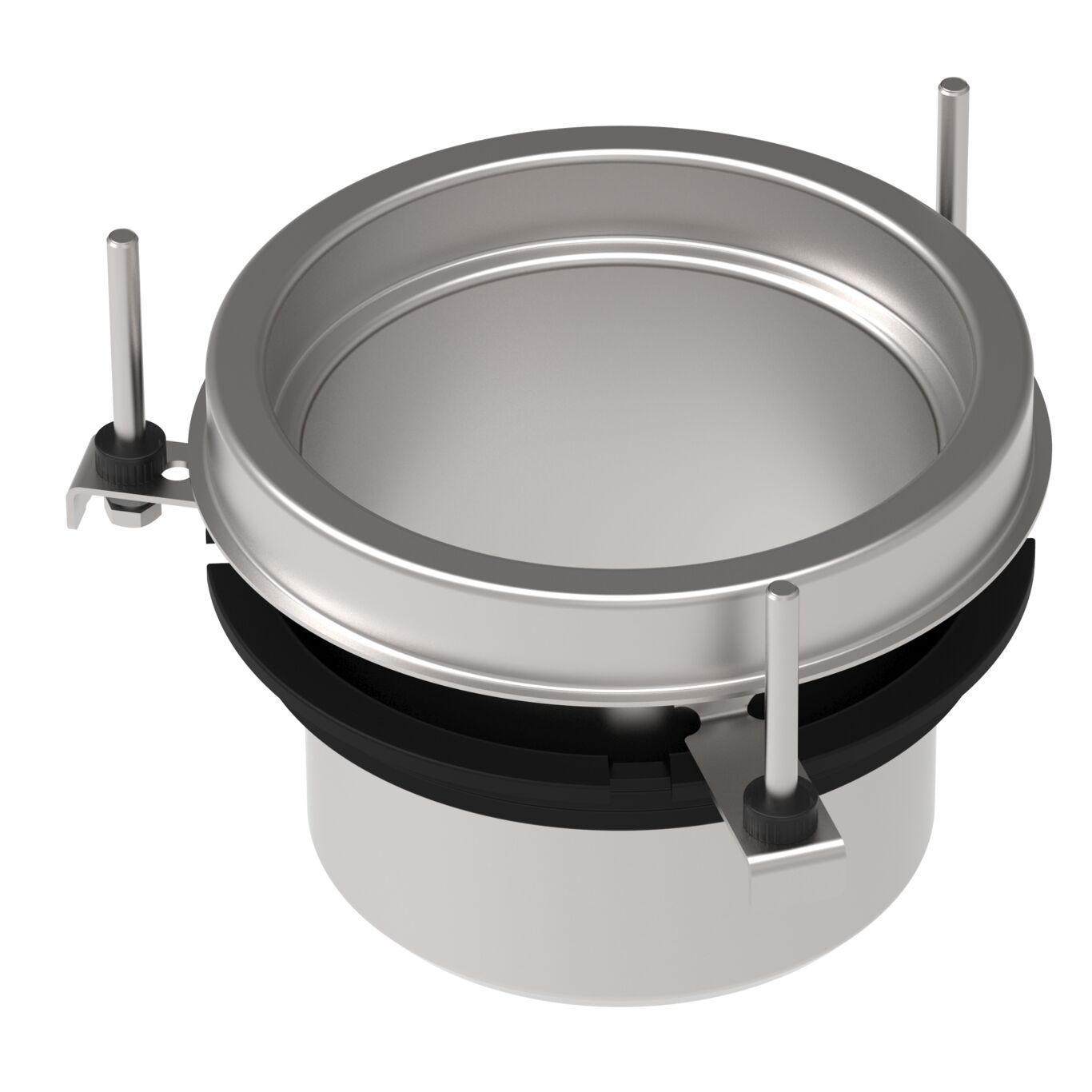

UPPER PART - (774.502.000 S)
×
![]()
Part Of the Series: Upper part-No membrane-205
Type no.: 774.502.000 S
EAN no.: 5705499112344
VVS no.: 153018188
LVI no.: 3303839
Size: Ø205
UPPER PART
-Floor: resin
-Frame: Ø205mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Resin |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 147 |
| Number of Screw Holes | 0 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Shape | Round |
| Size (Inch) | Ø8⅛ |
| Size (mm) | Ø205 |
| Weight (kg) | 2,22 |
| Weight (lbs) | 4,89 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
