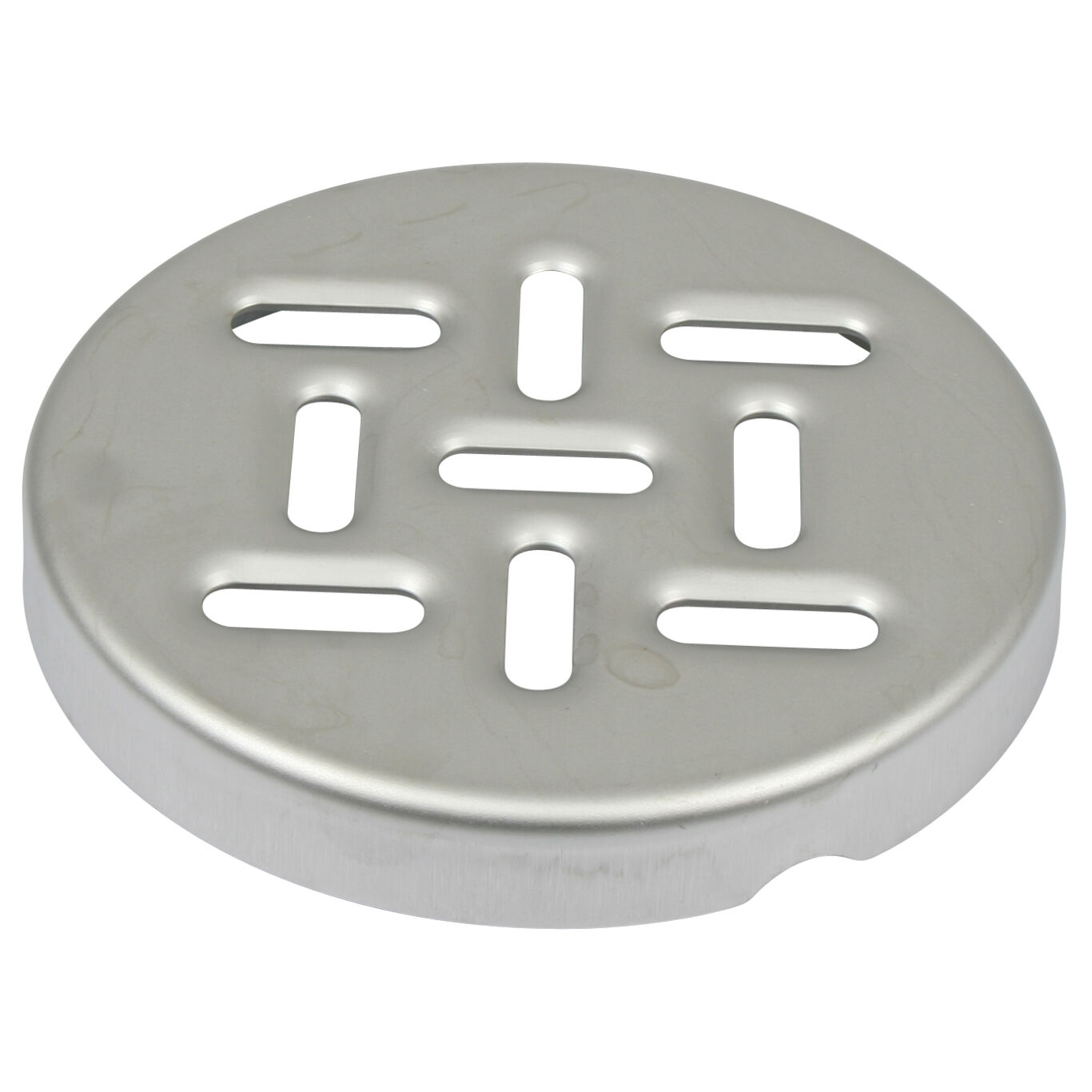

3MM GRATING CIRCLE - (790.173.000.03 S)
×
![]()
Part Of the Series: Grating-Drain-205-Vinyl-232
Type no.: 790.173.000.03 S
EAN no.: 5705499106817
VVS no.: 153559163
RSK no.: 7121876
NRF no.: 3395162
LVI no.: 3304051
Size: Ø195
3MM GRATING CIRCLE
-Grating: Ø173mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | L15 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 25 |
| Non-slip | R10 |
| Number of Screws | 0 |
| Shape | Round |
| Size (Inch) | Ø7⅝ |
| Size (mm) | Ø195 |
| Weight (kg) | 0,77 |
| Weight (lbs) | 1,7 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
