LOWER PART - (110.000.050)
×
![]()
Part Of the Series: Lower part-110
Type no.: 110.000.050
EAN no.: 5705499126914

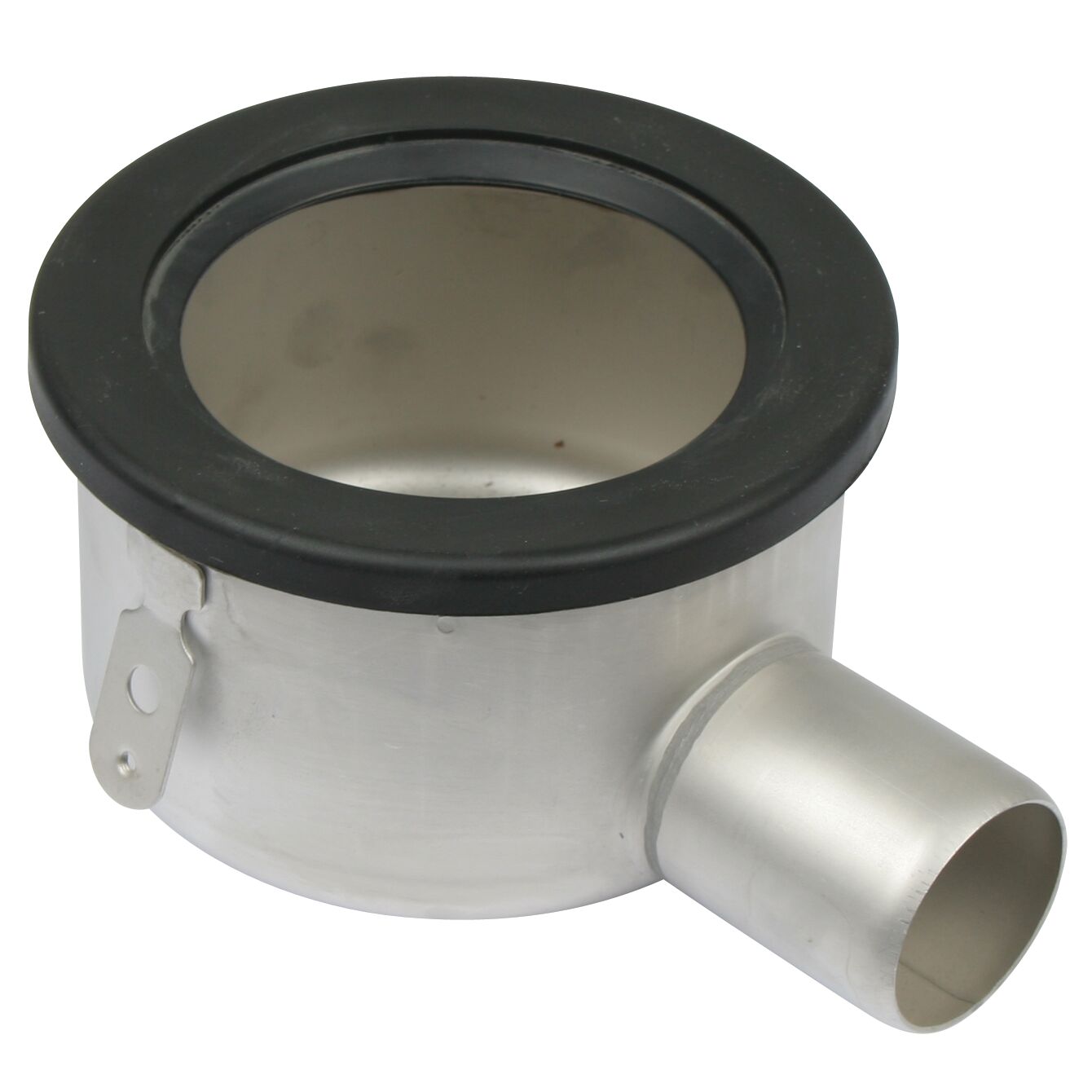

LOWER PART
-No membrane flange
-Outlet: Ø50mm, horizontal
-Stainless steel: AISI304/EN1.4301

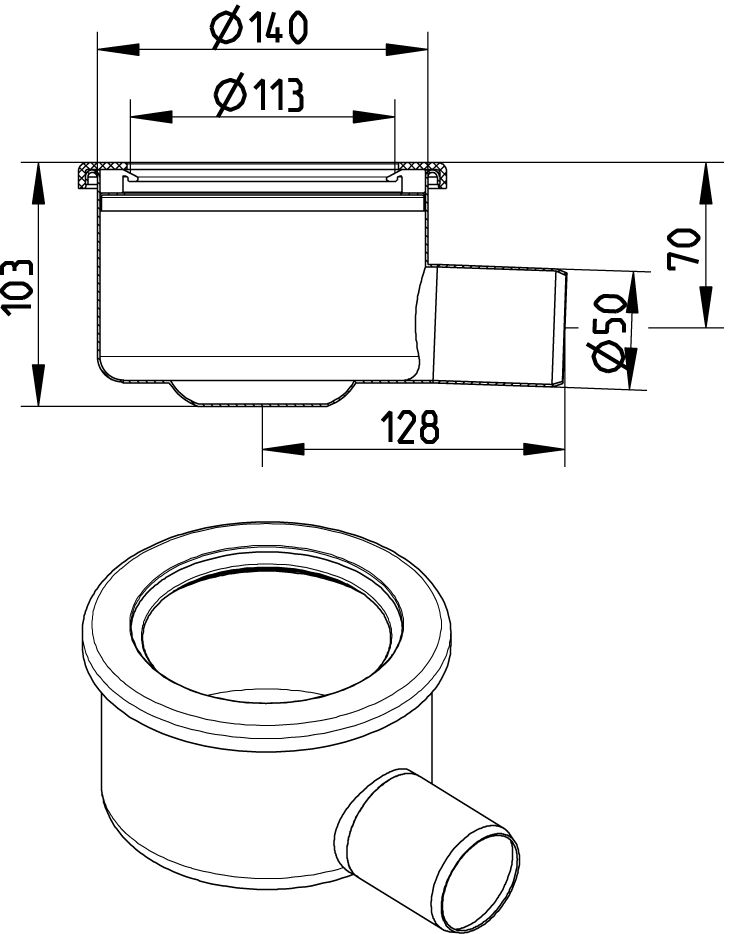

| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 103 |
| Number of Inlets | 0 |
| Number of inlets (Inch) | 0 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Horizontal |
| Weight (kg) | 0,66 |
| Weight (lbs) | 1,46 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
