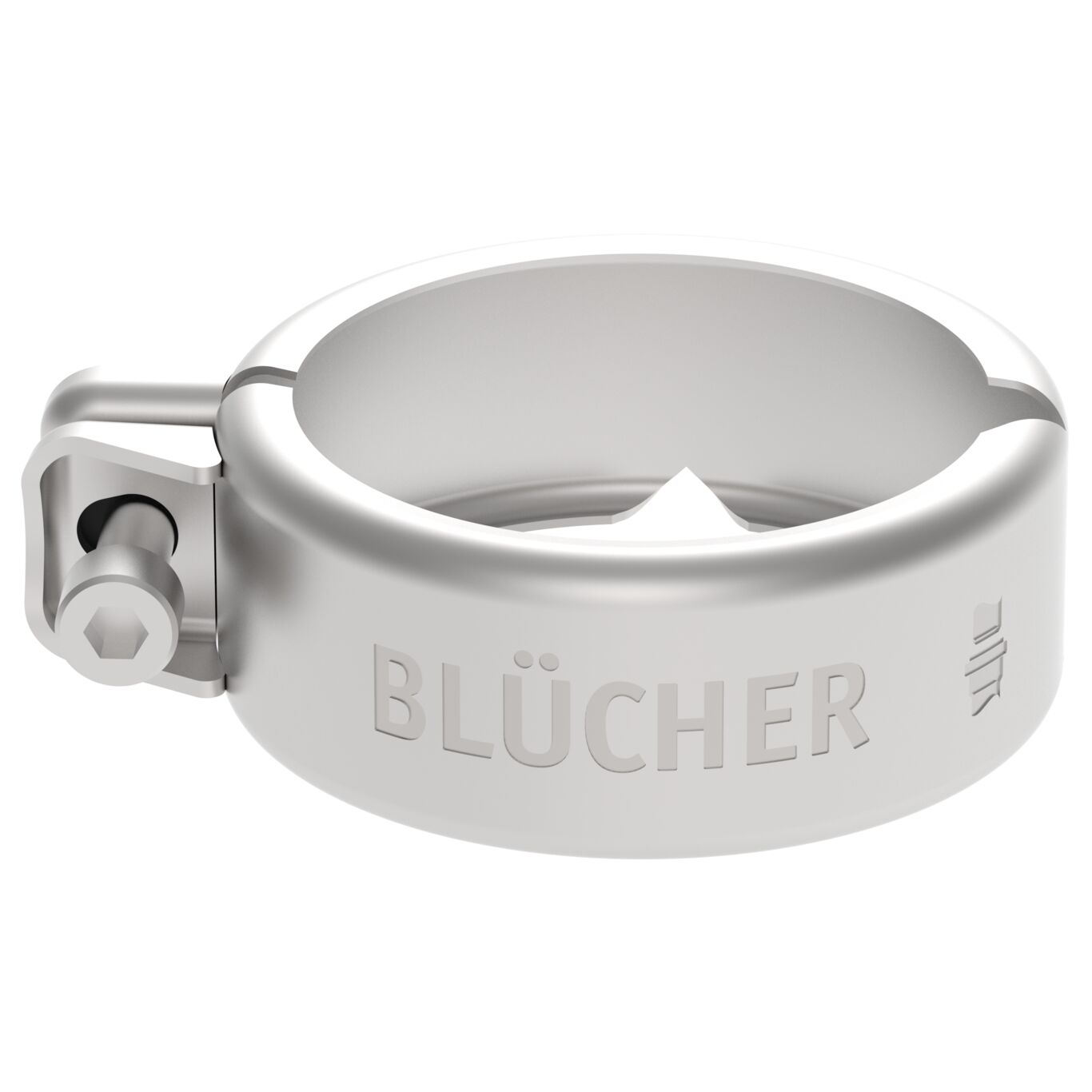

PIPE JOINT CLAMP - (847.075.075)
×
![]()
Part Of the Series: Joint clamp
Type no.: 847.075.075
EAN no.: 5705499412437
VVS no.: 160339375
RSK no.: 1552040
NRF no.: 2171186
LVI no.: 0245853
PIPE JOINT CLAMP

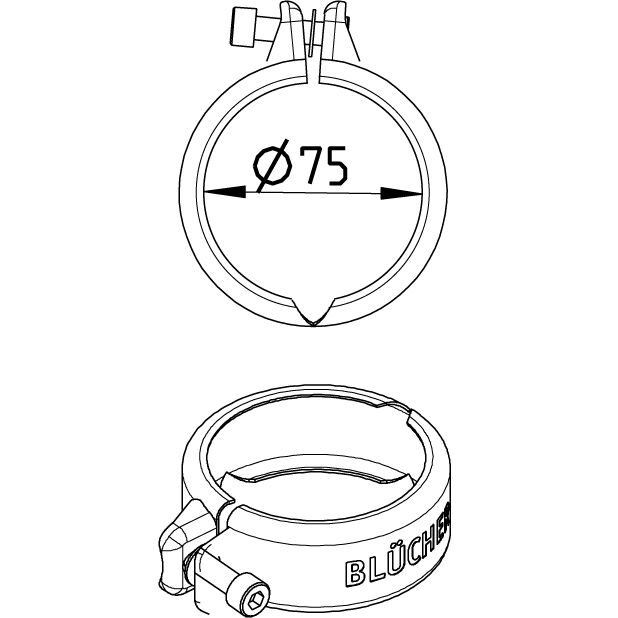

-Diameter: Ø75mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 35 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,15 |
| Weight (lbs) | 0,33 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
NO - 0692-22 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
TÜRK LOYDU - 25041616077231247
US - IAPMO File No.3247-EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe RINA -MAC320524XG EuroPipe Achilles Certificate - 46702 Lloyds Register LR22419510TA_02 PL - Hygienic Certificate - All Products DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - 23-2329630-PDA Bureau Veritas, 02375-I0 Pipes & Fittings
